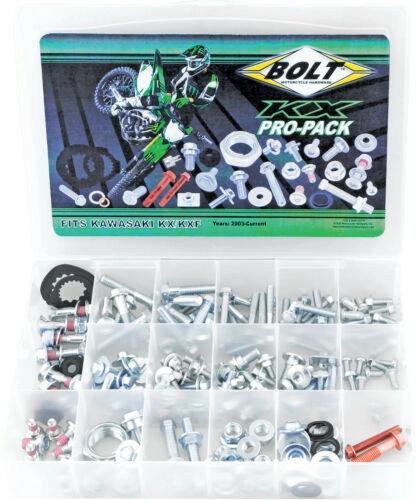

Bolt Pro Pack Kawasaki KX/KXF KX125 03-08 / KX250 03-08 / KXF250 04-25 / KXF450 06-25

BOLT Pro-Pack

KAWASAKI
KX125 03-08
KX250 03-08
KXF250 04-25
KXF450 06-25

KX/KXF Pro-Packs contain 170 pieces of OEM-style hardware including: factory style hex flange bolts with washers, plastic bolts, seat bolts, subframe bolts, fork bolts, brake rotor bolts, a full set of sprocket bolts, t-nuts, factory style aluminum body bushings, rim-lock washer, Fuji locknuts, and drain plug washers. Fits original model years 2003-2011.
Hardware meets or exceeds OEM specifications.

Hex Flange Bolts

(8) M8x40 10mm Hex Flange Bolt
(5) M8x35 10mm Hex Flange Bolt
(2) M8x30 10mm Hex Flange Bolt
(6) M8x20 10mm Hex Flange Bolt
(2) M8x16 10mm Hex Flange Bolt
(2) M6x45 8mm Hex Flange Bolt
(4) M6x35 8mm Hex Flange Bolt
(4) M6x30 8mm Hex Flange Bolt
(14) M6x25 8mm Hex Flange Bolt
(2) M6x20 8mm Hex Flange Bolt
(4) M6x16 8mm Hex Flange Bolt
(2) M6x14 8mm Hex Flange Bolt
(4) M6x12 8mm Hex Flange Bolt
(8) M6x20 8mm Hex Bolt with Integrated Mudguard Washer
(6) M6x16 8mm Hex Bolt with Integrated Mudguard Revet
(20) M6x12 8mm Hex Bolt with Integrated Mudguard Revet
(2) M5x12 8mm Hex Head flange bolts

Screws

(6) M5x10 Pan Head Screw

Button Head Bolts

(2) M6x16 Allen key socket head cap screw
(2) M6x12 Allen key socket head cap screw

Drain Plug Locking Rings

(4) M10x18mm OD Aluminum compression ring
(4) M10 "Banjo Bolt" Aluminum Compression Ring
(2) M6x11mm OD Copper Compression Ring

Lock washers

(2) M8x17 Lockwasher
(4) M6x22 Plastic Screwdriver
(2) M6x16 Plastic Screwdriver
(2) M6x12 Lockwasher

Nuts

(1) M22 Locking Axle Nut
(2) M8 Flange nut
(2) M6 Flange nut
(3) M10 Fuji Nut
(2) M8 Fuji Nut
(3) M6 Fuji Nut
(2) M6 T-nut

Wheel & Drive Related

(4) M6 Rotor Bolt with Threadlock
(4) M8 Rotor Bolt with Threadlock
(2) M8x1.25x50 Chain Tensioner Bolt
(2) M8x1.25 Chain Adjustment Nut
(6) M8x1.25x30 Black Gear Bolt
(6) M8x1.25 Black Gear Nut
(2) Vetiel cap
(1) Metal screwdriver Flange cap
(2) M8 Aluminum Rim-lock Revet

SKU: BMHKXPP, BMH-KXPP

KX / KXF Pro-Pack contains factory style hardware including: M6 & M8 flange bolts and shoulder bolts for shroud, seat, sub-frame, & fork guard, rotor bolts, a full set of sprocket bolts, counter shaft lock washers, t-nuts, valve stem grommets & caps, chain slider hardware, brake master cylinder bolts, Fuji lock nuts, and drain plug washers, and thread chasers. Also includes 22mm metal locking axle nut to eliminate stock castle nut/cotter pin.

Fits full size model years 2003-current.

This Bolt kit includes replacements for the following Kawasaki part numbers: 92154-0546, 92154-2961, 92154-0547, 92150-1760, 92143-1676, 92153-1399, 132BA0840, 92153-0020, 92150-1516, 92154-0463, 132BA0835, 92151-1537, 132BA0830, 132BA0820, 92154-0462, 132BA0816, 92154-0462, 132BA0816, 132BA0614, 132BC0614, 92154-2964, 132BA0616, 132BC0616, 92154-2965, 132BA0620, 132BC0620, 92154-2972, 92154-2966, 132BA0645, 132BC0645, 132BA0612, 132BC0612, 92154-2975, 92154-2970, 92151-1133, 132BA0630, 132BC0630, 92154-2977, 92154-1942, 92150-1486, 132BA0625, 132BC0625, 92154-2967, 92154-0520, 132BA0635, 132BC0635, 92154-2978, 92154-2983, 92210-1352, 220AA0508, 92210-0630, 92210-0493, 92151-1799, 92150-1811, 92150-1978, 92153-0620, 92154-2957, 92150-1385, 92015-1143, 92015-1014, 92153-0864, 92154-0915, 92154-0546, 92153-0863, 92150-1506, 92150-1340, 92154-2969, 92154-2970, 92150-1505, 92153-0503, 92150-1435, 92210-0939, 92210-1411, 92154-0972, 92152-0052, 92154-1739 Our fasteners are the same spec bolts as the factory.
