Bolt Pro Pack Yamaha YZ/YZF

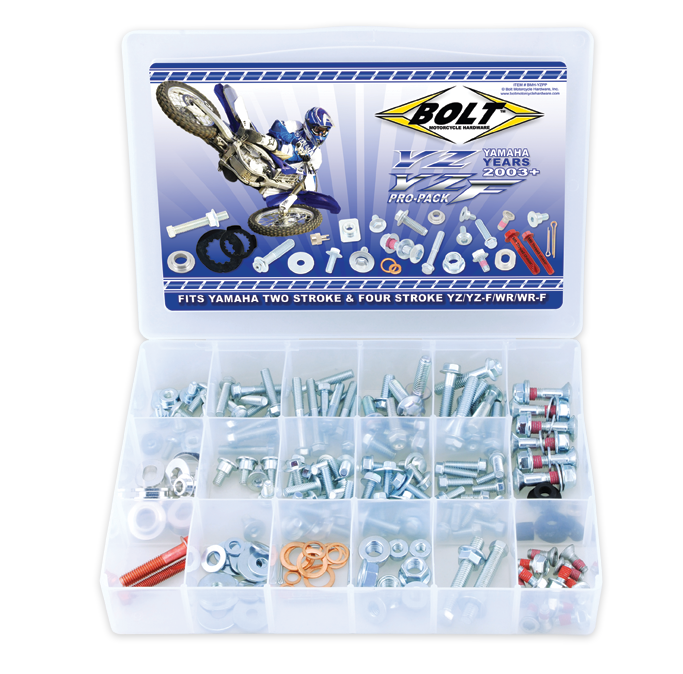

New! YZ/YZF Pro-Packs contain 190 pieces of OEM-style hardware, including: factory-style aluminum body bushing, plastic bolts, seat bolts, subframe bolts, fork bolts, brake rotor bolts, a full set of sprocket bolts, T-nuts, factory-style aluminum body bushings, rim-lock washer, Fuji locknuts, and drain plug washers. Fits model years 1992-2022
Hardware meets or exceeds OEM specifications.

Hex Flange Bolts

(8) M8x40 Hex Flange Bolt
(8) M8x35 Hex Flange Bolt
(1) M8x30 Hex Flange Bolt
(4) M8x25 Hex Flange Bolt
(5) M8x16 Hex Flange Bolt
(4) M6x40 Hex Flange Bolt
(6) M6x35 Hex Flange Bolt
(10) M6x30 Hex Flange Bolt
(10) M6x25 Hex Flange Bolt
(4) M6x20 Hex Flange Bolt
(2) M6x16 Hex Flange Bolt
(4) M6x14 Hex Flange Bolt
(2) M6x12 Hex Flange Bolt
(6) M6x20 Hex Flange Bolt with Integrated Fender Washer
(4) M6x12 Hex Flange Bolt with Integrated Fender Washer
(2) M6x16 Large Hex Flange Bolts

Yamaha Specialty

(4) Yamaha M6x16 Bolt
(8) Yamaha M6 Radiator Cover Screw
(6) Yamaha M6 Front Fork Protector Bolt

Screws

(4) M5x10 Pan Head Screw

Lock washers

(1) M8x25 Plastic Revet
(4) M8x17 Lockwasher
(1) M6x25 Plastic Revet
(6) M6x22 Plastic Revet
(2) M6x16 Plastic Screwdriver
(2) M6x12 Lockwasher

Drain Plug Locking Rings

(2) M10x18mm OD Aluminum compression ring
(4) M10 "Banjo Bolt" Aluminum Compression Ring
(2) M8x15mm OD Aluminum compression ring
(2) M6x11mm OD Copper Compression Ring

Socket head Allen bolt

(2) M6x16 Allen key socket head cap screw

Split pins

(3) 2.0mm x 20mm Split Pin

Nuts

(2) M10 Fuji Nut
(2) M6 Fuji Nut
(2) M10 Flange Nut
(2) M8 Flange nut
(2) M6 T-nut

Aluminum bushings

(4) Aluminum 22mm Oval Bushing
(2) Aluminum 26mm Oval Bushing
(4) Yamaha M6 Aluminum Bushing

Wheel & Drive

(6) M6 Front Brake Disc Bolt with Threadlock
(6) M6 Rear Brake Disc Bolts
(2) M8x50 Chain Tensioner Bolt
(2) M8 Chain Adjustment Nut
(6) M8 bolt from Gear
(6) M8 Gear Nut
(2) Valve cap Black
(1) Metal screwdriver Bottle cap
(2) M8 Aluminum Rim-lock Revet
