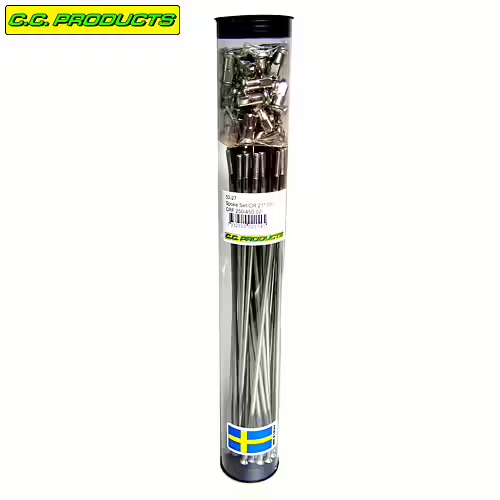

CC-Products Achterwiel 17″ RVS spakenset 36 stuks + nippels voor OEM naaf voor velg 17x2.50/2.75 Honda XRV 750 Africa Twin 1990-2003

Fits the following models:
HONDA
XRV 750 Africa Twin 90-03

For Excel 17x2,50 and original 17x2,75 rear wheel with hub 42601-MV1-000.
This spoke set has 32 spokes with spoke nipples.

Spoke size: 8 spokes of 3,6x169 mm. Outer right side.
OEM Ref. 426B0-MV1-000.
Spoke size: 8 spokes of 3,6x173 mm. Inner right side.
OEM Ref. 426C0-MV1-000.
Spoke size: 16 spokes of 3,6x178 mm. Left side.
OEM Ref. 426A0-MV1-000.

17x2,50 Excel rim with article number 58-658 fits this spoke set.

Nipple size: 7,0x20 mm. (9G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.

One spoke and nipple, 3,6x169 mm, have article number 50-0673-1
One spoke and nipple, 3,6x173 mm, have article number 50-0673-2
One spoke and nipple, 3,6x178 mm, have article number 50-0673-3
