CC-Products Achterwiel 17x4.25 RVS spakenset 36 stuks + nippels voor OEM wielen Honda 1989-heden

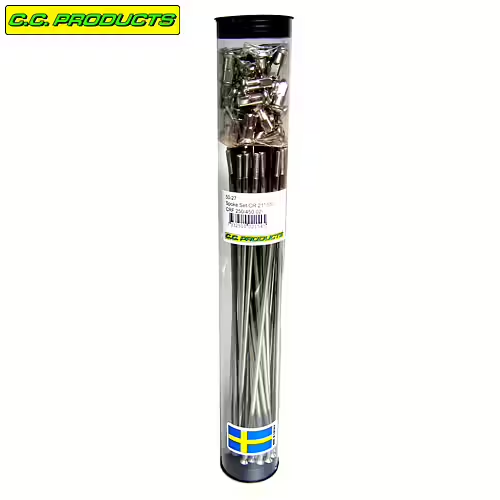

CC Products stainless spoke set

Fits the following models:
HONDA
CR 125 R 89-07
CR 250 R 89-07
CR 500 R 89-01
CRF 250 R 04-
CRF 250 X 04-18
CRF 250 RX 13-
CRF 450 L 19-20
CRF 450 RL 21-
CRF 450 R 02-
CRF 450 X 06-18
CRF 450 RX 16-

For 17x4,25 rear wheel with these hubs:
42601-ML3-680 1989
42601-ML3-682 90-91
42601-ML3-790 92-94
42601-MAC-680 95-97
42635-MAC-680 98-01
42635-KZ4-J40 2002
42635-MEB-750 2003
42635-MEN-000 04-05
42635-KRN-710 06-17
42635-MKE-A60 19->

This spoke set has 32 spokes with spoke nipples.

Spoke size: 16 spokes of 4x171 mm, outer spoke on both sides.
OEM Ref. N/A, original size is 18-inch or 19-inch.
Spoke size: 16 spokes of 4x178 mm, inner spoke on both sides.
OEM Ref. N/A, original size is 18-inch or 19-inch.

17x4,25 Excel rim with article number 58-943 fits this spoke set.

Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.

One spoke and nipple, 4x171 mm, have article number 50-0850-1
One spoke and nipple, 4x178 mm, have article number 50-0850-2
