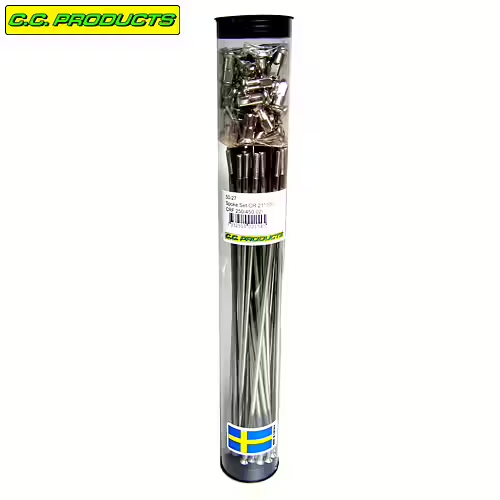

CC-Products Achterwiel 19″ RVS spakenset 36 stuks + nippels voor OEM wielen Yamaha YZ 1989-

CC Products stainless spoke set

Fits the following motorcycles:
YAMAHA
DT 200 WR 91-96
TT 250 R 96-02
TT-R 250 93-06
TT-R 250 Raid 94-96
YZ 125 89-
YZ 250 89-
YZ 250 X 15-
YZ 250 F 01-08
YZ 250 FX 16-
YZ 400 F 97-00
YZ 426 F 01-02
YZ 450 F 03-08
YZ 450 FX 16-
WR 250 F 03-
WR 400 F 98-01
WR 426 F 02-03
WR 450 F 04-
WR 500 Z 91-93

For 19-inch rear wheel with hub 2VN-25311-00-98 replaced by 4EW-25311-00 replaced by 5ET-25311-00.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 4x204 mm, outer spoke on both sides.
Spoke size: 18 spokes of 4x206 mm, inner spoke on both sides.
OEM Ref. 2VN-25304-00 (Spoke Set) replaced by 3JD-25304-00 replaced by 4XM-25304-00 replaced by 5HD-25304-00.

Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.

One spoke and nipple, 4x204 mm, have article number 50-0031-1
One spoke and nipple, 4x206 mm, have article number 50-0031-2
