CC-Products Voorwiel 21″ RVS spakenset 36 stuks + nippels voor OEM wielen Kawasaki KX 125/250 1999-2005 & KX 250F 2004-2005 & Suzuki RM-Z 250 2004-2006

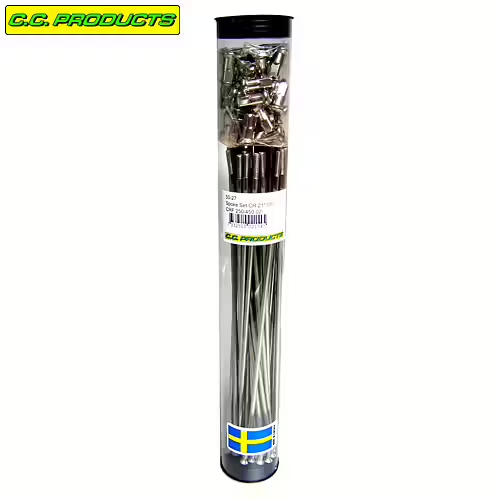

CC Products stainless spoke set

Fits the following models:
KAWASAKI
KX 125 99-05
KX 250 99-05
KX 250 F 04-05

SUZUKI
RMZ 250 04-06

For 21-inch front wheel with Kawasaki hub 41034-1300 (99-02) och 41034-0018 (03-05) and Suzuki hub K41034-0018.
This spoke set have 36 spokes with spoke nipples.

Spoke size: 27 spokes of 3.6 x230 mm. Inner and outer spoke on the right side and the outer spokeon the disc side.
Kawasaki OEM Ref. 41029-1295 Replaced by 41029-0007.
Suzuki OEM Ref. K4102-91295 Replaced by K4102-90007.

Spoke size: 9 spokes of 3,6x231,5 mm. Inner spokes on the disc side.
Kawasaki OEM Ref. 41030-1165 Replaced by 41030-0003.
Suzuki OEM Ref. K4103-01165 Replaced by K4103-00003.

Nipple size: 7,6x20 mm. (9G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
